增益23dBi, 频率60GHz-90GHz, WR-12 毫米波标准增益喇叭天线 OLB-12-23

增益10dBi, 频率60GHz-90GHz, WR-12 毫米波标准增益喇叭天线 OLB-12-10

大洋微波的OLB-12-10是一个毫米波标准增益喇叭天线，工作频率范围是60GHz-90GHz。毫米波标准增益喇叭天线提供标准增益，毫米波标准增益喇叭天线的典型半功率波束宽度在E平面和H平面是 H 55° / V 55°.

大洋微波毫米波标准增益喇叭天线支持线性极化波形。该天线的输入是一个带有UG-387/U法兰的WR-12波导管。标准增益喇叭天线使用的阻抗为50欧姆。

加入询价列表
SKU: OLB-12-10 Categories: , , , , , , , , , , ,
Description

SPEC

毫米波标准增益喇叭天线

增益10dBi, 频率60GHz-90GHz, WR-12 毫米波标准增益喇叭天线

OLB-12-10
大洋微波的OLB-12-10是一个毫米波标准增益喇叭天线，工作频率范围是60GHz-90GHz。毫米波标准增益喇叭天线提供标准增益，毫米波标准增益喇叭天线的典型半功率波束宽度在E平面和H平面是 H 55° / V 55°.

大洋微波毫米波标准增益喇叭天线支持线性极化波形。该天线的输入是一个带有UG-387/U法兰的WR-12波导管。标准增益喇叭天线使用的阻抗为50欧姆。

指标

数值

最小频率(GHz)

60

最大频率(GHz)

90

增益(dBi)

10

3 dB 波束宽度

H 55° / V 55°

波导

WR-12

法兰

UG-387/U法兰

材料

铜

极化方式

线极化

阻抗（Ω）

50

特点

精密加工和镀金

低驻波

线性极化

重量轻

矩形波导接口

回波损耗低

产品应用

天线范围

天线增益测量

系统设置

Outline

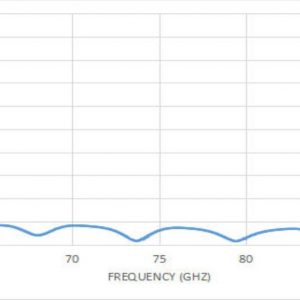

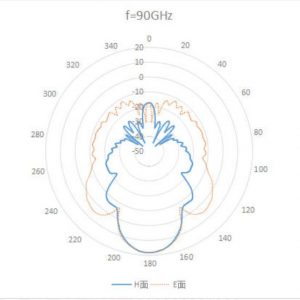

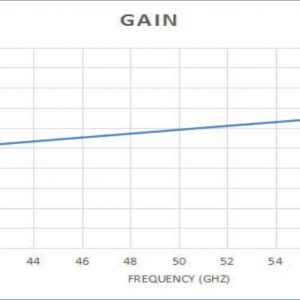

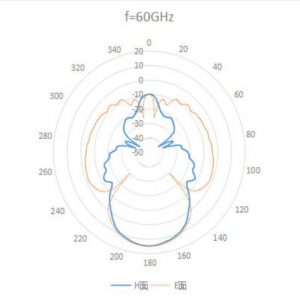

Plot

Additional information
Min. Frequency (GHz)

Max. Frequency (GHz)

90
Gain (dBi)

Flange

HPBW 3 dB Beamwidth

Waveguide

Material

Polarization

Impedance (Ω)

产品展示
