增益20dBi,频率220GHz-325GHz, WR-03 毫米波标准增益喇叭天线 OLB-03-20

大洋微波的OLB-03-20是一个毫米波标准增益喇叭天线，工作频率范围是220GHz-325GHz。毫米波标准增益喇叭天线提供标准增益，毫米波标准增益喇叭天线的典型半功率波束宽度在E平面和H平面是H 18° / V 18°.

大洋微波毫米波标准增益喇叭天线支持线性极化波形。该天线的输入是一个带有UG-387/U法兰的WR-03波导管。标准增益喇叭天线使用的阻抗为50欧姆。

加入询价列表
SKU: OLB-03-20 Categories: , , , , , , , , , , ,
Description

SPEC

毫米波标准增益喇叭天线

增益20dBi,频率220GHz-325GHz, WR-03 毫米波标准增益喇叭天线

OLB-03-20
大洋微波的OLB-03-20是一个毫米波标准增益喇叭天线，工作频率范围是220GHz-325GHz。毫米波标准增益喇叭天线提供标准增益，毫米波标准增益喇叭天线的典型半功率波束宽度在E平面和H平面是H 18° / V 18°.

大洋微波毫米波标准增益喇叭天线支持线性极化波形。该天线的输入是一个带有UG-387/U法兰的WR-03波导管。标准增益喇叭天线使用的阻抗为50欧姆。

指标

数值

最小频率(GHz)

220

最大频率(GHz)

325

增益(dBi)

20

3 dB 波束宽度

H 13° / V 13°

波导

WR-03

法兰

UG-387/U-M 法兰

材料

铜

极化方式

线极化

阻抗（Ω）

50

特点

精密加工和镀金

低驻波，重量轻

线性极化

回波损耗低

产品应用

天线范围

天线增益测量

系统设置

Outline

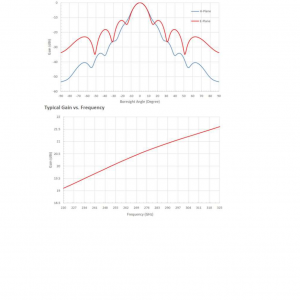

Plot

Additional information
Min. Frequency (GHz)

Max. Frequency (GHz)

325
Gain (dBi)

Flange

HPBW 3 dB Beamwidth

Waveguide

Material

Polarization

Impedance (Ω)

产品展示
PDF
